2835 Series
Product Introduction

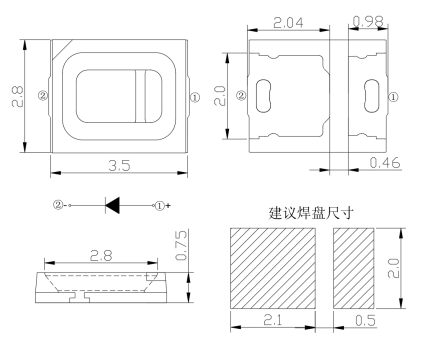

External dimensions(mm) | In kind |
|
|
| Product | Size | Color | λd(nm)/ | Vf(V) | IV(mcd) | Viewing | IF | ||
| (L*W*Hmm) | CCT(K)/ | Angle | (mA) | ||||||
| CIE(X,Y) | 2θ1/2 | ||||||||
| (deg) | |||||||||
| Min | Max | Min | Max | ||||||
| 040.R000 | 3.5*2.8*0.75 | Red | 618-640 | 1.8 | 2.3 | 500 | 1000 | 120° | 20 |
| 040.G000 | 3.5*2.8*0.75 | Greed | 515-525 | 2.8 | 3.6 | 1000 | 1500 | 20 | |
| 040.B000 | 3.5*2.8*0.75 | Blue | 460-470 | 2.8 | 3.6 | 250 | 400 | 20 | |
| 040.O000 | 3.5*2.8*0.75 | Orange | 601-606 | 1.8 | 2.3 | 500 | 1000 | 20 | |
| 040.Y000 | 3.5*2.8*0.75 | Yellow | 580-595 | 1.8 | 2.3 | 400 | 600 | 20 | |
| 040.W000 | 3.5*2.8*0.75 | White | X:0.27 Y:0.22 | 2.5 | 3.5 | 1300 | 3600 | 20 | |
| 040.WW | 3.5*2.8*0.75 | White | X:0.27 Y:0.22 | 2.5 | 3.5 | 1300 | 3600 | 20 | |
| White | X:0.27 Y:0.22 | 2.5 | 3.5 | 1300 | 3600 | ||||
| 040A.RGB | 3.5*2.8*0.75 | Red | 620-630 | 1.8 | 2.2 | 500 | 1000 | 20 | |
| Greed | 512-520 | 2.7 | 3.2 | 1000 | 1500 | ||||
| Blue | 460-470 | 2.7 | 3.2 | 250 | 400 | ||||
