1010 Series
Product Introduction

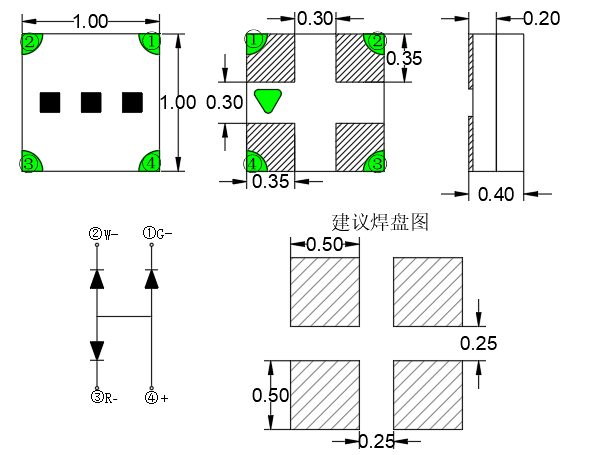

External dimensions(mm) | In kind |
|
|
| Product | Size | Color | λd(nm)/ | Vf(V) | IV(mcd) | Viewing | IF | ||
| (L*W*Hmm) | CCT(K)/ | Angle | (mA) | ||||||
| CIE(X,Y) | 2θ1/2 | ||||||||
| (deg) | |||||||||
| Min | Max | Min | Max | ||||||
| 013.G000 | 1.0*1.0*0.4 | Greed | 515-535 | 2.7 | 3.2 | 28.5 | 450 | 120° | 5 |
| 013.RYG | 1.0*1.0*0.4 | Red | 620-630 | 1.7 | 2.2 | 7.2 | 280 | 5 | |
| Yellow Greed | 565-577 | 1.7 | 2.2 | 25 | 55 | ||||
| 013.OG | 1.0*1.0*0.4 | Orange | 601-610 | 1.6 | 2.1 | 40 | 355 | 5 | |
| Greed | 512-525 | 2.7 | 3.2 | 28.5 | 450 | ||||
| 013.GW | 1.0*1.0*0.4 | Greed | 512-525 | 2.7 | 3.2 | 28.5 | 450 | 5 | |
| White | X:0.27 Y:0.22 | 2.7 | 3.5 | 270 | 410 | ||||
| 013.RB | 1.0*1.0*0.4 | Red | 620-630 | 1.7 | 2.2 | 7.2 | 280 | 5 | |
| Blue | 461-465 | 2.8 | 3.3 | 180 | 150 | ||||
| 013.RGB | 1.0*1.0*0.4 | Red | 620-625 | 1.7 | 2.2 | 7.2 | 280 | 5 | |
| Greed | 512-525 | 2.7 | 3.2 | 28.5 | 450 | ||||
| Blue | 461-465 | 2.8 | 3.3 | 180 | 450 | ||||
| 013.RBG | 1.0*1.0*0.4 | Red | 620-625 | 1.7 | 2.2 | 7.2 | 280 | 5 | |
| Blue | 461-465 | 2.8 | 3.3 | 180 | 450 | ||||
| Greed | 512-525 | 2.7 | 3.2 | 28.5 | 450 | ||||
| 013B.RGB | 1.0*1.0*0.4 | Red | 620-625 | 1.7 | 2.2 | 7.2 | 280 | 20 | |
| Greed | 512-525 | 2.7 | 3.2 | 28.5 | 450 | ||||
| Blue | 461-465 | 2.8 | 3.3 | 180 | 450 | ||||
